Surface Vertical Rod Panic Exit Device
Lever Sets & Exit Devices » Surface Vertical Rod Panic Exit Device
|
|
Surface Vertical Rod Panic Exit Device[EDFVR531]$189.00
|
Features
- Dead Latching and Non-Handed.
- Dogging Standard Only on NON-UL listed Device.
- Interlocking Top and Pullman Bottom Latch.
- Baked Enamel Aluminum (AL) and Duronodic (DU) Finish.
- PED-PS03 & PED-PS11 - Standard Top & Bottom Strike.
- PED-FP161 & PED-FPANSI - Latch & Strike Filler Plate.
- PED-SNB - Standard with Sex Bolts.
- For all doors up to 36” (3’) x 84” (7’).
CODE COMPLIANCE
- ANSI A156.3 Grade 1. UL10C and UBC 7.2 for positive pressure.
- ANSI A117.1 and ADA for barrier-free accessibility.
- C-UBC - California Uniform Builders Code -2001.
- NFPA 80 - National Fire Protection Association -1999
Specifications:
- Exit Devices shall be by TA model number ED-VR531 for standard exit opening
- ED-FVR531 for UL firebarrier doors.
- Construction: EAll exits devices to be made from wrought steel.
- Exit devices shall be modern push pad type, non –handed, and provided with thru-bolts for proper installation.
- Hex-key dogging shall be provided only on exit devices that are not Fire Rated and that are NOT UL listed.

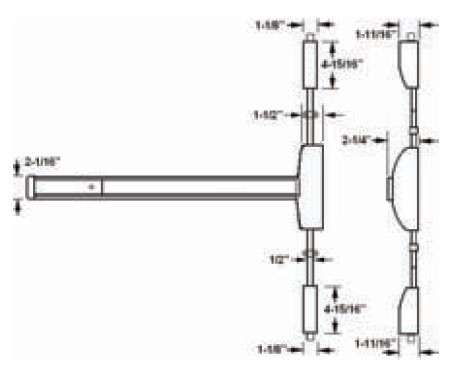

- Exit device shall be narrow profile;projecting only 2-1/4” from the surface of the door.EDFVR531
- UL Listed for Fire and Egress- Listed for 1-1/2 hours for doors Under 38”(3’-2”) x 86”(7’-2”)
- 1 Year Warranty.
OPTIONS
- EAK500 - Alarm Kit. Cylinder NOT Included.

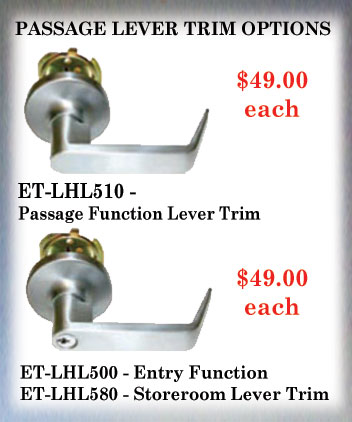

- ET-LHL510 - Passage Function - Lever - #161 cylindrical preparation.
- ET-LHL500 - Entry Function - Lever - #161 cylindrical preparation.
- ET-LHL580 - Storeroom Function - Lever - #161 cylindrical Prep.

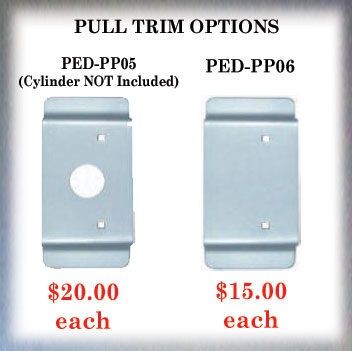

- ET-PP05 - Pull Plate with Cylinder cut-out, Rim Cylinder NOT Included.
- ET-PP06 - Pull Plate Only.
