MANUAL FLUSHBOLTS

Commercial Levers & Locksets » MANUAL FLUSHBOLTS

MANUAL FLUSHBOLTS

click for larger image
MANUAL FLUSHBOLTS
[FB197]

$20.00


Features

  • FB197 - Forged Brass.
  • FB197AL - Extruded Aluminum. .
  • Non-Handed.
  • 5/8” Throw with 7/8” Vertical Adjustment
  • 12” Rod to Fit Standard ANSI Preparation.
  • Spring Loaded Lever to Project or Retract Bolt.
  • Forged Brass Construction.
  • Bolt Housing Screws  #8 x 32 x 1/2” MS
    #8 x 1” SM
  • Strike Screws #8 x 32 x 1/2” MS
    #8 x 1” SM
  • Bolt Guide Screws #8 x 32 x 1/2” MS
    #8 x 1” SM
  • Listed up to 3 hours on Hollow Metal and Steel-Covered Composite Doors up to 8 feet.

CODE COMPLIANCE


  • FED. SPEC. - 1049
  • ANSI - A156.16.
  • BHMA - L14081
  • NFPA 80 - National Fire Protection Association

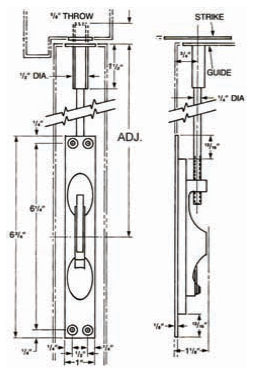

                     CLICK FOR LARGER IMAGE

Specifications:

  • Manual Flushbolt - Manual Flushbolts shall be by TA model number FB197SB
  • Series made from forged brass or FB197AL series made from extruded aluminum.
  • All exit devices shall be modern push pad type, non-handed and provided with thru-bolts for proper installation.
  •  Flush bolts shall be provided with 1/2” diameter brass bolts and project 5/8” from the top or bottom edge of door with 7/8” vertical adjustment.
  •  Flush bolts shall have spring loaded lever to project or retract the bolts.
  • 1 Year Warranty.
